GPS Vehicle Tracker with CAN Bus - 4G Model - Rental with monthly payment

Brand: Queclink

4G LTE Cat 1CANBUSBLE 5.2Accident DetectionCompactRental

Deep vehicle diagnostics at your fingertips: The 4G CAN bus tracker reads – depending on the vehicle model – real-time values such as fuel level, fuel consumption, range, engine speed, door status, and diagnostic messages directly from the onboard network and transmits them to your platform. GPS tracker for rent with flexible monthly packages.

Select package (optional):

Quantity:

Free Shipping

On orders over €50

2 Year Warranty

On all devices

Support

Mon-Fri 9-18

Highlights

Minimum contract term: 3 months | Cancellation period: 3 months | Billing: semi-annually
Optimal use for vehicles with CAN bus: cars, trucks, vans, delivery vehicles, as well as agricultural and construction machinery (e.g., tractors, excavators, wheel loaders).

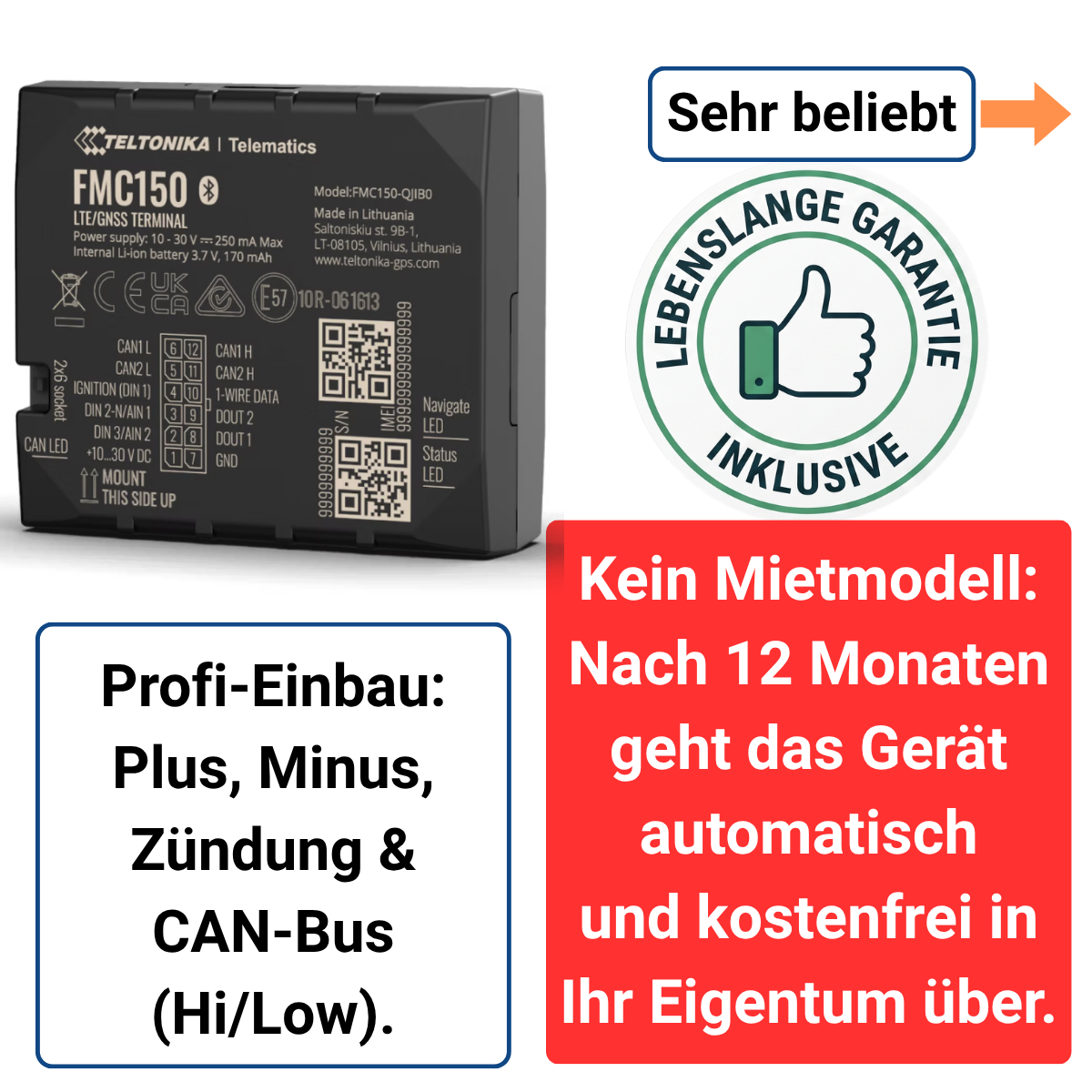

Wiring diagram: Yellow cable → ignition positive | Red cable → constant positive | Black cable → ground | CAN High & CAN Low → OBD/CAN bus port
Network coverage: Reliable 4G connection guaranteed in over 100 countries.

Features

Target group & application areas

•The CAN bus GPS tracker is particularly suitable where classic tracking solutions reach their limits.
•Fleet operators focusing on complete vehicle diagnostics
•Logistics and transport companies with heterogeneous fleets
•Vehicle owners with increased security and analysis needs
•Companies looking to integrate vehicle data into existing telematics platforms

Fields of application

•Telematics insurance tariffs (Pay-how-you-drive, UBI)
•Fleet management with CAN-bus-supported vehicle analysis
•Precise accident documentation and event analysis
•Recording of operating hours and mileage

Cellular & data transmission

•LTE Cat 1: B1/B2/B3/B4/B5/B7/B8/B20/B28 frequency bands
•Up to 10 Mbps downlink / 5 Mbps uplink
•GSM Quad-Band: 850/900/1800/1900 MHz
•GPRS: 85.6 Kbps, EDGE: 236.8 Kbps
•Internal cellular antenna for compact installation

Positioning & accuracy

•GNSS receiver supporting GPS, GLONASS, Galileo, BeiDou
•High accuracy: typical deviation < 2.0 meters (CEP)
•Outstanding sensitivity: -165 dBm for tracking and navigation
•Fast acquisition times: Hot start < 1 second

CAN bus functionality

•Simultaneous reading of various CAN bus systems (depends on vehicle make and model)
•Recording of fuel level, RPM, engine temperature, and mileage
•Decoding of error codes (DTCs) and dashboard warning lights
•Virtual ignition detection without additional wiring

Driver monitoring & safety

•Detailed driving behavior analysis (acceleration, braking, cornering)
•Accident detection with highly detailed data logging prior to the crash
•Towing notification triggered by the 3-axis accelerometer
•Over-speeding alerts and monitoring

Interfaces & connectivity

•Bluetooth Next Gen (BLE 5.2) for connecting wireless accessories
•Compatible with BLE temperature, humidity, and magnetic sensors
•1-Wire support for iButton/RFID and temperature probes

Geo-fencing & security zones

•Configuration of up to 20 individual geo-fences
•Immediate alerts when crossing defined boundaries
•Jamming detection against GPS blockers
•Warning for low vehicle or backup battery voltage

Configuration & management

•Micro-USB port for local configuration and diagnostics
•FOTA (Firmware Over-The-Air) for seamless remote updates
•Adjustable settings via SMS commands
•Intelligent LED indicators showing status of GNSS, cellular, and power

Power supply & design

•Wide operating voltage support (8–32 V DC) for 12V and 24V systems
•Built-in 60 mAh lithium polymer backup battery
•Ultra-lightweight: only 41 grams
•Operating temperature: -20 °C to +60 °C

Why choose the CAN bus tracker?

•Transforms regular vehicles into highly connected smart fleets
•Reduces maintenance costs through early detection of vehicle errors
•Increases overall fleet safety and security
•Future-proof hardware utilizing reliable 4G technology
